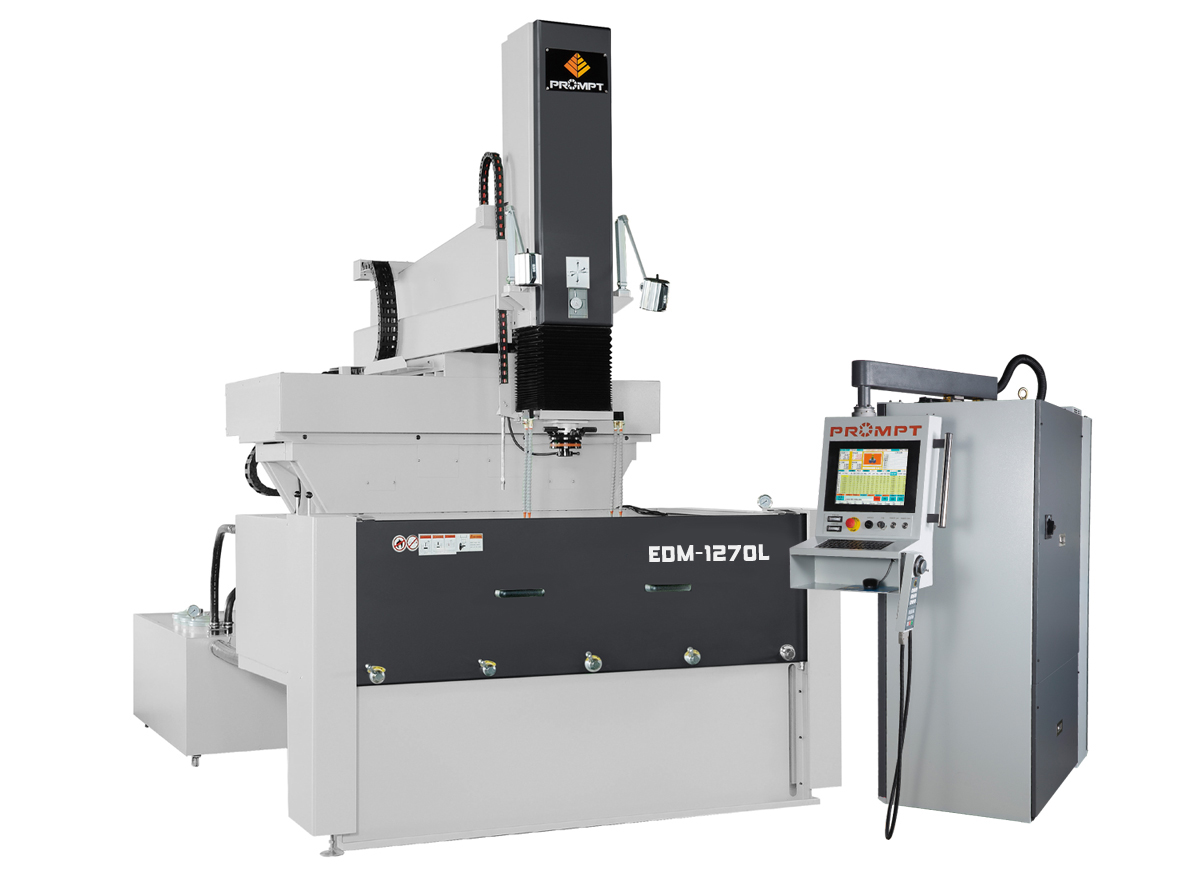

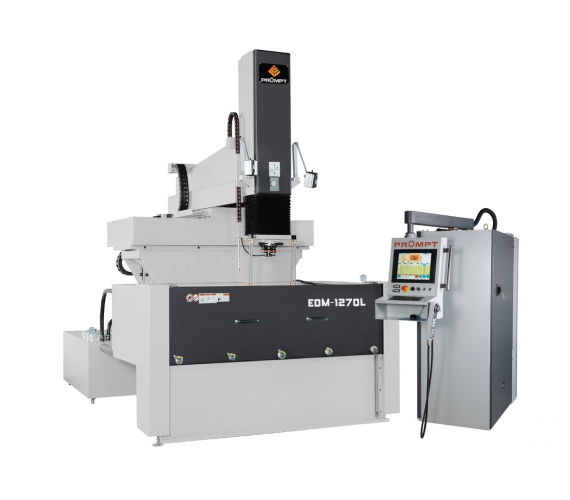

EDM-1270L ELECTRICAL DISCHARGE MACHINE

EDM-1270L新
EDM-1270L新

Features:

  • The system adopts Windows CE controller
  • Six-axis programmable control, XYZ+ABC (can be replaced by XYZ+ABW or XYZ+ACW)
  • ATC system and A, B, C axis and spindle tilt option are available to increase machine functionally
  • Column movable master by linear slideway on X/Y/Z
  • Automatic lubrication
  • USB port
  • Use a 15-inch LCD touch screen, mouse, and standard keyboard
  • Presented in a dialog window with 3D stereo graphic description
  • Machining path and graphic display
  • Close-loop and feedback circuit design of 0.001mm resolution numerical linear scale is adopted on the 3 axis of the machine. Such design could get precise position setting, and increase the machining precision and efficiency of ORBIT-CUT
  • Dialogue programming editor that provides variety of hole enlargement modes (including function of edge search, center search, reference point search)
  • Automatic multi-step machining is available
  • Automatic home search function
  • ARC automatic arcing adjustment
  • Automatic center search and offset which could search the center and the deepest point of the hole
  • Movement of axis linear (3 axis), arc (2 axis), spiral (3 axis) and offset
  • Switch function: Language switch (Chinese/English) and unit system switch (Metric/Inch)
  • Single side sparking of 3 axis and 6 directions (plane rotation)
  • Automatic programming edition function: According to the material, area, initial current and wear rate do proper adjustment
Item Unit EDM-1270L
Work Table Size mm 1350 x 820
X/Y/Z Axis Travel mm 1200 x 700 x 500
Electrode Plate to Work Table mm 530 - 1030
Max. Electrode Weight kg 400
Max. Workpiece Weight kg 5000
Z Axis Motor K AC Servo 1.5K
Z Axis Rapid Feed Rate m/min 10
Z Axis Cutting Feed Rate m/min 10
Work Tank Size mm 2100 x 1250 x 625
Oil Tank Capacity L 1875
Weight of Machine Unit kg 6500
Outside Dimensions mm 3450 x 3600 x 3150

Standard Accessories Optional Accessories
Paper filters Automatic fire extinguisher
Clamping kits EROWA accessory
Electrode holder Dielectric cooler
Tool box C axis
Flushing nozzle Permanent magnetic table
Working lamp ATC (Auto Tool Changer)
Drill chuck Power regular
